2021 New Style Steam Shrink Applicator

Product Categories
Kunshan Howfond Machinery Co., Ltd
Contact Now

2021 New Style Steam Shrink Applicator

Brand Name : Howfond

Model Number : HF-1500M

Certification : CE

Place of Origin : china

MOQ : 1 set

Price : USD2300

Payment Terms : Western Union, T/T, L/C

Supply Ability : 500 sets per month

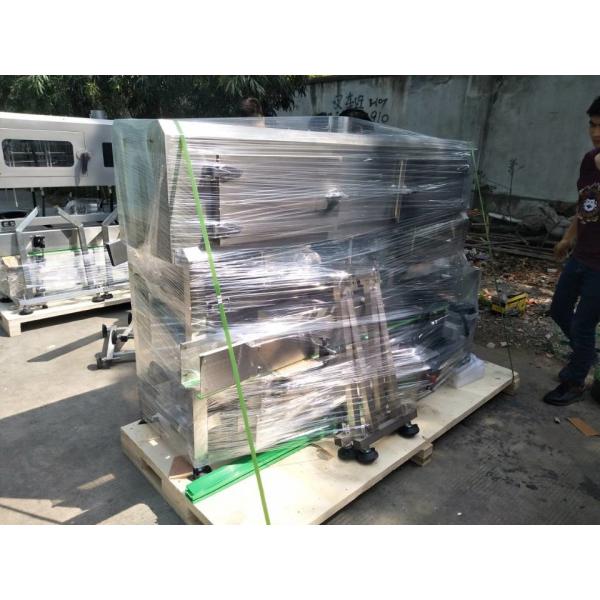

Packaging Details : export wooden case

material : stainless steel

length : 1500mm

Blower powder : Ø12, 0.25KW

Powder supply of blower : 220V 3P 60Hz or 220V 1P 50Hz

Entrance /exit height : Max 350mm

Running pressure : Max 0.6Mpa

Weight : 220kg

Cerificate : CE SGS

Packaging Type : bottles/cans

Mateial : SS steel 304

Power : 9KW

Size : 600x600x1280

Features : Automatic Temperature Control, Adjustable Conveyor Speed, Easy to Operate

Conveyor Belt Width : 300mm

Label Material : PET PVC OPS

Steam Pipe Material : SS316

Tunnel Size : L1500*W300*H300mm

Port : shanghai

Power Supply : 220V/380V

Driven Type : Pneumatic

Contact Now

2021 New Style Steam Shrink Applicator

1. Brief Introduction

Steam shrink tunnel is used for shrinking sleeve labels to label kinds of bottles: different and irregular round bottles, square bottles, flat bottles and women-shaped bottles. By shrinking PVC or PET sleeve labels to seal bottles caps /necks, cover bottles body even shrink wrap bottle bottom.

To get smooth shrink effect, we usually adjust the heights and positions of the 3 sections of steam spray tubes insides of tunnel. Bottles run on the conveyor, the shrink usually goes from down to top of bottles.

2021 New Style Steam Shrink Applicator

2.Advantage of Howfond’s 2021 New Style Steam Shrink Applicator

1)The blower motor's holder is made of SS304 stainless steel.
2)The elbow which connects blower motor is made of SS304 stainless steel.
3)The whole of frame and doors are made SS304 stainless steel.
4)The steam spray tubes are made of SS304 stainless steel.
5)The steam transmission tubes are made of SS304 stainless steel.
6)The leafage inside of blower is also made of SS304 stainless steel.
7)Round steam jet pipes save 30% steam at least.
8)Passivating treatment to steam jet pipes, working life at least 5years

2021 New Style Steam Shrink Applicator

2021 New Style Steam Shrink Applicator

2021 New Style Steam Shrink Applicator

2021 New Style Steam Shrink Applicator

3. 2021 New Style Steam Shrink Applicator Parameters

Item Models HF-1200M HF-1500M HF-2000M HF-2300M
Length of tunnel 1.2meters 1.5meters 2.0meters 2.3meters
Blower powder Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW Ø12, 0.25KW
Powder supply of blower 220V 3P 60Hz or 220V 1P 50Hz
Entrance /exit height Max 350mm
Entrance /exit width 130~210mm (fixed size once confirmed)
Running pressure Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa Max 0.6Mpa
Weight 180kg 200Kg 220kg 230kg
Steam consumption 18kg/h 21kg/h 24kg/h 24kg/h
Conveyor speed 0~35m/minute 0~35m/minute 0~35m/minute 0~35m/minute
Outline size (m) L1.2*W0.4*H1.5 L1.5*W0.4*H1.5 L2.0*W0.4*H1.5 L2.3*W0.4*H1.5

2021 New Style Steam Shrink Applicator
2021 New Style Steam Shrink Applicator

kunshan Howfond Machinery Co.,Ltd.

Add:No.18 DongTing North Rd(215400),ED-Zone,TaiCang City,Jiangsu Province.
Skype: alicehongjin
Tel: +86-0512-89571370
Mobile/WeChat :+86-15692118327
